Product Name |
GALVALUME(55% Al-Zn) coated steel coil |
Specifications |
JIS G3321 1998 |
SGLCC,SGL400,SGL440,SGL570 |
SGLCD |
ASTM A792M 2003 |
CS Type A,B,C, FS |
DS |
SS Grade 230,255,275,340,550 |
EN10327 2004 |
DX51D,DX52D,DX53D |
EN10326 2004 |
S220GD,S250GD,S280GD,S320GD,S350GD,S550GD |
Steel Thickness (mm) |
0.2-3.0 |
Width (mm) |
600-1550 |
Coating Mass |
JIS G3321 1998 |
AZ90,AZ120,AZ150,AZ170 |
ASTM A792M |
AZM70,AZM90,AZM100,AZM150,AZM165,AZM180 |
EN10326/7 |
AZ100,AZ150,AZ185 |
Spangle |
Regular Spangle |
Chemical Surface Treatment |
Chromated Treatment, Oiled or Anti-finger print |
|
Remarks:
1. Tolerance for thickness, width, flatness ect, can conform to the individual product specification.

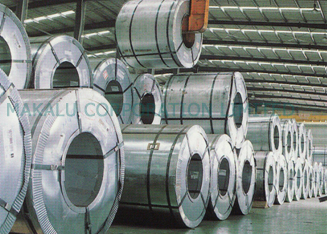

2. Coil inside diameters can be either 508mm or 610mm,maximum coil outside diameter is 2000mm.
3. Weight of a single coil can be from 3 to 25 metric tons.
4. Please make enquires to our Sales& Marketing Division for products with special specifications.
|
| |
|
|
|
|
| |
 |
